MT2205D is a secondary side SR controller which integrates 10mΩ/100V MOSFET for synchronous recti?cation. It can replace Schottky diodes in flyback converters for higher efficiency and better heat dissipation.

MT2205D supports both high-side and low-side rectifications and operates under Discontinuous Conduction Mode (DCM), Continuous Conduction Mode (CCM), and Quasi-Resonant Mode (QRM).

When the secondary side current is close to zero, MT2205D can quickly turn off the internal MOSFET to prevent sharing with the primary side. The unique slew rate detection circuit can prevent the chip from falsely turning on during DCM or quasi resonant operations.

With built-in power supply circuit, no additional auxiliary winding and power supply circuit are required, and low BOM cost is achieved.

Integrates 10mΩ/100V MOSFET

Precisely controls MOSFET switching time and prevents MOSFET false turn on

Built-in power supply circuit, no additional auxiliary winding and power supply circuit are required

Operates under CCM/DCM/QRM

20ns fast turn-off delay

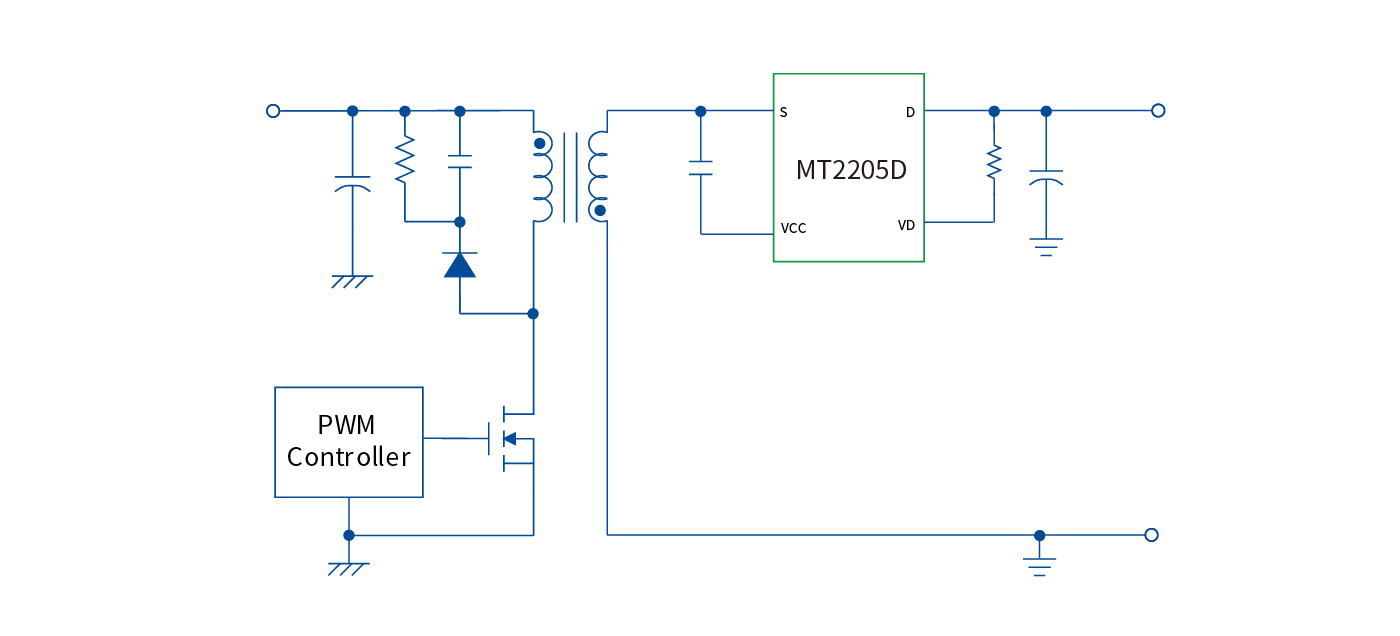

Supports high/low-side rectification

Excellent dynamic response

Available in SOP8 package
